Bilcare
Zeon X

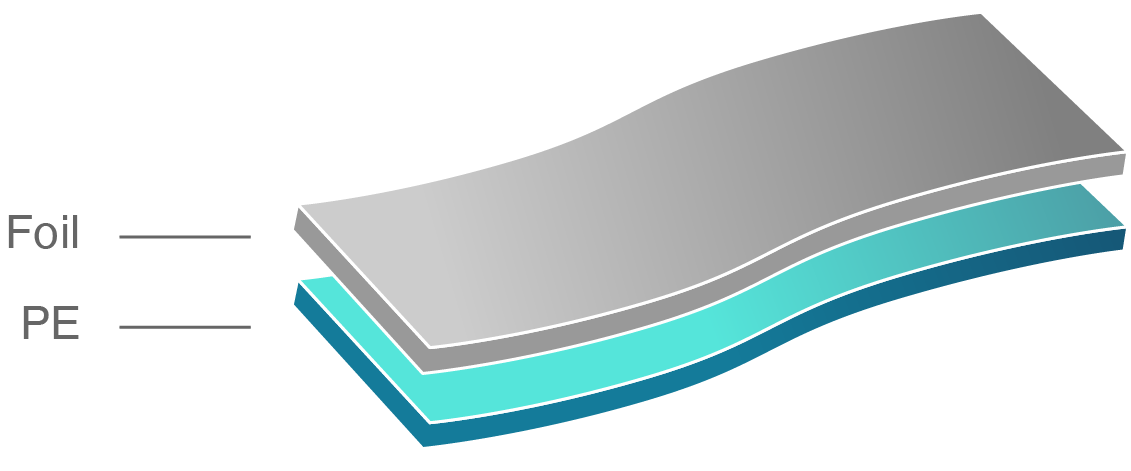

Foil/PE
Bilcare Zeon X Co-extruded is push through lidding foil, Dull side Print primer and bright side extruded PE for Lidding foil Sealable with PE.
Applications
Suitable for sealing with DESALU product where PE is sealing layer
Salient Features
- No residual solvent
- Non-toxic
- Excellent printability
Technical Data Sheet
| Property | Test Method | Unit | Specifications |
|---|---|---|---|
| Paper GSM | DIN EN ISO 2286 | gm/m2 | 36.0 to 44.0 |
| Al Foil GSM | Standard | gm/m2 | 50.8 to 57.2 |
| PE GSM | DIN EN ISO 2286 | gm/m2 | 53.9 to 63.3 |
| Total Thickness | Standard | micron | 86.0 to 105.1 |
| Total GSM | Standard | gm/m2 | 101.9 to 124.6 |
| Peel Strength (Paper to Al Foil)(Al Foil to PE) | Standard | kg/15mm |
Fiber Peel 0.25 minimum |
Bilcare Lamiflex RAL Variants
| Paper / Foil / PE |
|---|
| 40 / 9 / 40 |
| 40 / 12 / 37.5 |
- Customized products and colours can be developed to suit the specific cases.
Innovation Possibilities
-
Printed or Unprinted
Additional Information
Printed and Non Printed
| Parameter | Test Method | Unit | Specification |
| Toxicity Test | Current Usp |
| Non Toxic |
| Average No. Of Joints Per Roll/Spools |
| Number | 2 max |
Slitted
| Inner Diameter of Core | 76mm/152mm |
| Slit Width tolerance | Upper limit +1 and lower Limit -1mm |
| Slit Roll Width | 50mm to 1190mm |
| Packing | Each Slitted Spool Wrapped in Black PE film |
| Labelling | Bar Coded labels containing the product details are fixed inside the core, on stretched wrapped film and finally on the carton .Other label indicating the coated surface is also affixed on the spool |
